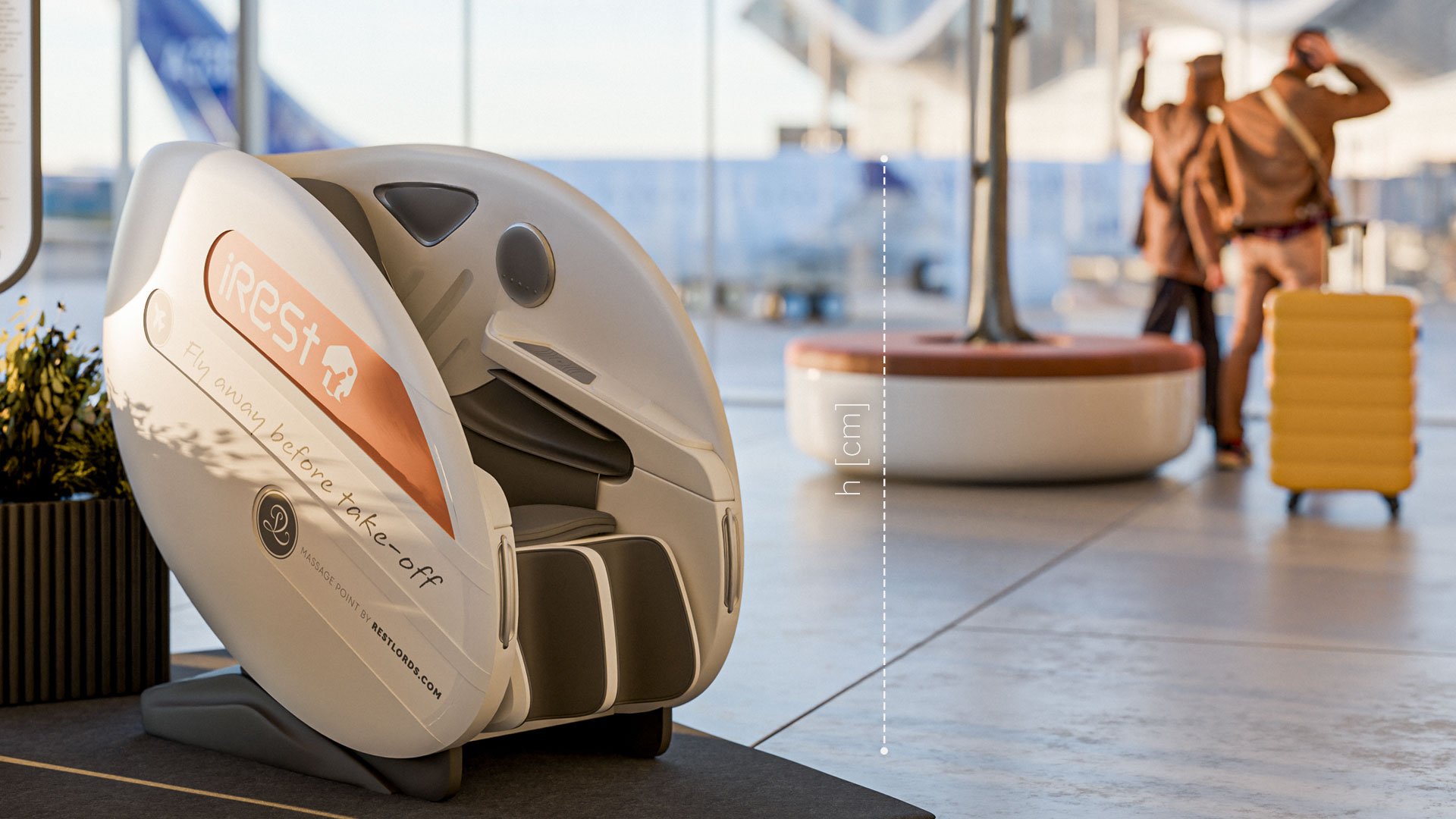

iRest R-Pass (T103) is a model that combines comfort with general accessibility, making it ideal for lounge areas in public spaces. The massage chair impresses with its futuristic look and, thanks to its clever design, provides a sense of safety and privacy even in the most crowded spaces. In addition, this compact model occupies only 1 m² and, thanks to the Zero Wall function, can be positioned just 5 cm from the wall. The detailed dimensions and technical parameters of the massage chair you will find below.
Will the massage chair fit in my chosen location?

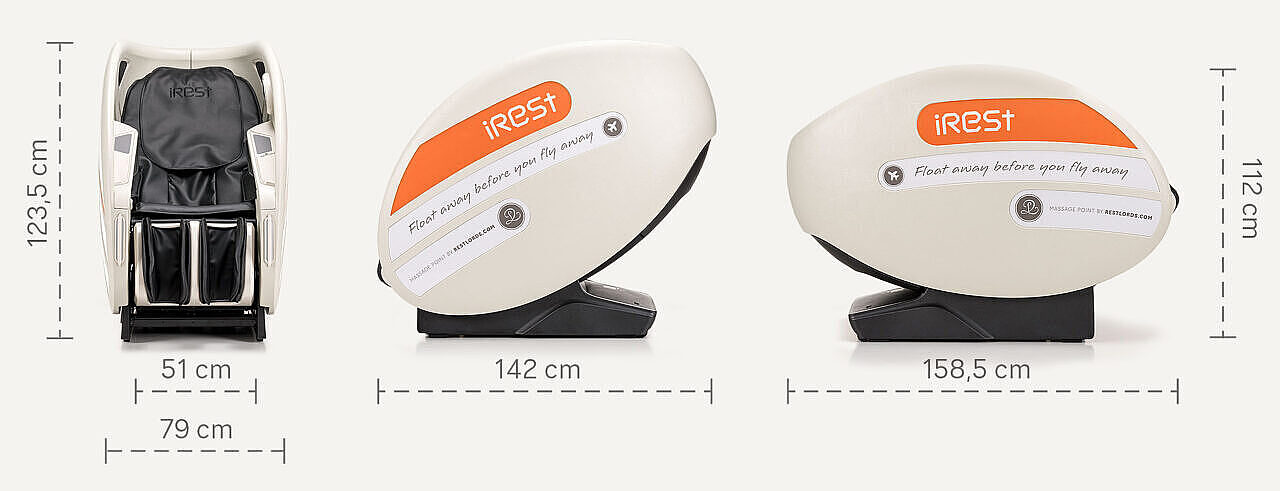

The image above shows the exact dimensions of the R-Pass (T103) massage chair.
Additionally:
- the seat is 51 cm wide, 45 cm deep and 55 cm high;
- the legroom with calf massager is 12 cm wide;
- minimum width of the door to allow easy access – 80 cm;
- required space:
- behind the massage chair – at least 5 cm;
- in front of the massage chair – at least 16,5 cm;
- the forearms massager is 50 cm long;
- massage range: 135 cm – length achieved by SL-shape (massage from the neck, through the buttocks to the thighs);
- number of airbags – 14 pcs;
- number of massaging balls – 4 pcs;
- massage system – 2D;
- number of air pumps – 1pcs;
- pressure in airbag massage – 0.025-0.03 MPa;
- volume < 60 dB;
- rated power input 80 W.
When discussing the figures relating to iRest R-Pass, other features worth noting include:
- 3 large stickers on the sides of the chair serving as advertising space;
- 5 massage techniques;
- 3 levels of the massage arms width;
- 3 levels of the massage arms speed;
- 3 levels of the airbag massage strength.
Full description of the iRest R-Pass (T103):
